Detail Page

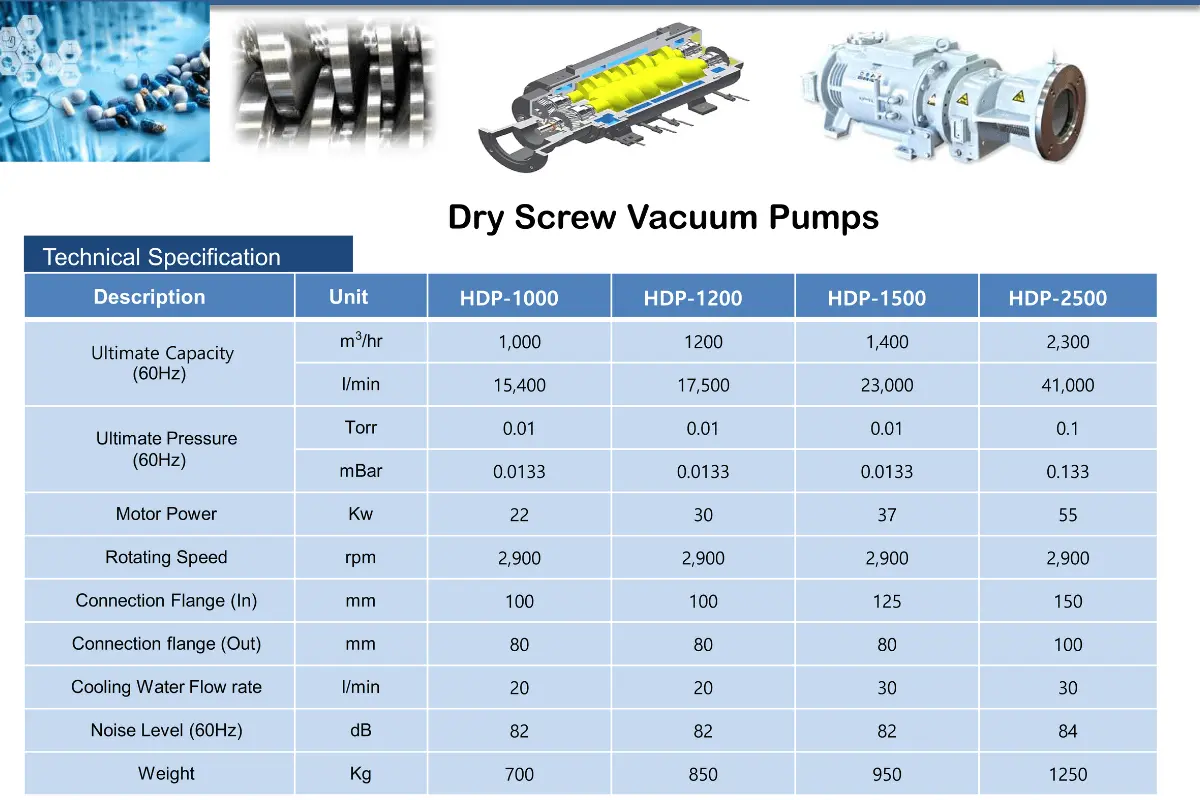

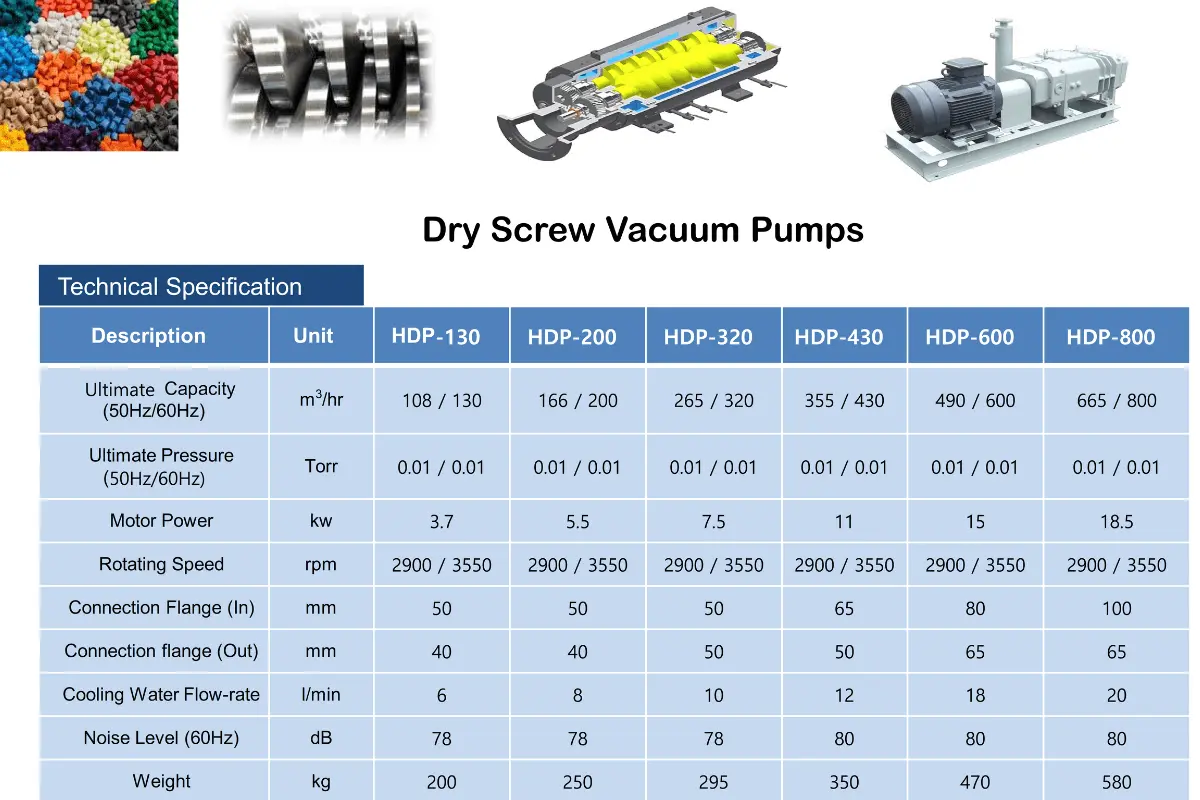

HDP SERIES DRY SCREW VACUUM PUMP

Capacity: 200 m3/hr ~ 2,500 m3/hr (50/60Hz)

Vacuum Capacity: 5×10-3 Torr.

Feature

• 3- Stage Variable Pitch Screw Low Vibration, Low Noise, Oil Free, Power Saving.
• Suction Efficiency ↑, Vacuum ↑, Energy 34% ↓, Exhaust Temp 50% ↓
• Design of Simple structure Easy to maintain, management cost reduces (30~40%)
• Various coating applications (Peek, PFA, Nickel, Hastelloy Coating).
• Apply PEEK, Teflon coating to gas contact areas.
• Excellent Abrasion resistance and Corrosion resistance.
• Structure without mechanical seal. No trouble due to seal wear and contamination, high bearing durability.
• Equipped with IEC Flange Motor, Simple installation, Low noise and vibration.

Application:

Pharmaceutical, Food (Freeze Dry), Chemical, Metal, Plastic, Electronic, High-tech Industry.
